Modify AWS Amplify Studio Generated Components in Code

AWS Amplify Studio has many code generation capabilities that speed up development time; however, it’s built for developers so it’s important to be able to override all generated code. We will use overrides to extend the functionality of the components.

Instruct

  1. First, we will create state fields to know if each modal is displayed or not. We’ll also create a status field to store which notes should be updated.

    import { useState } from 'react'

function App() {
  const [showCreateModal, setShowCreateModal] = useState(false)
  const [showUpdateModal, setShowUpdateModal] = useState(false)
  const [updateNote, setUpdateNote] = useState()
...

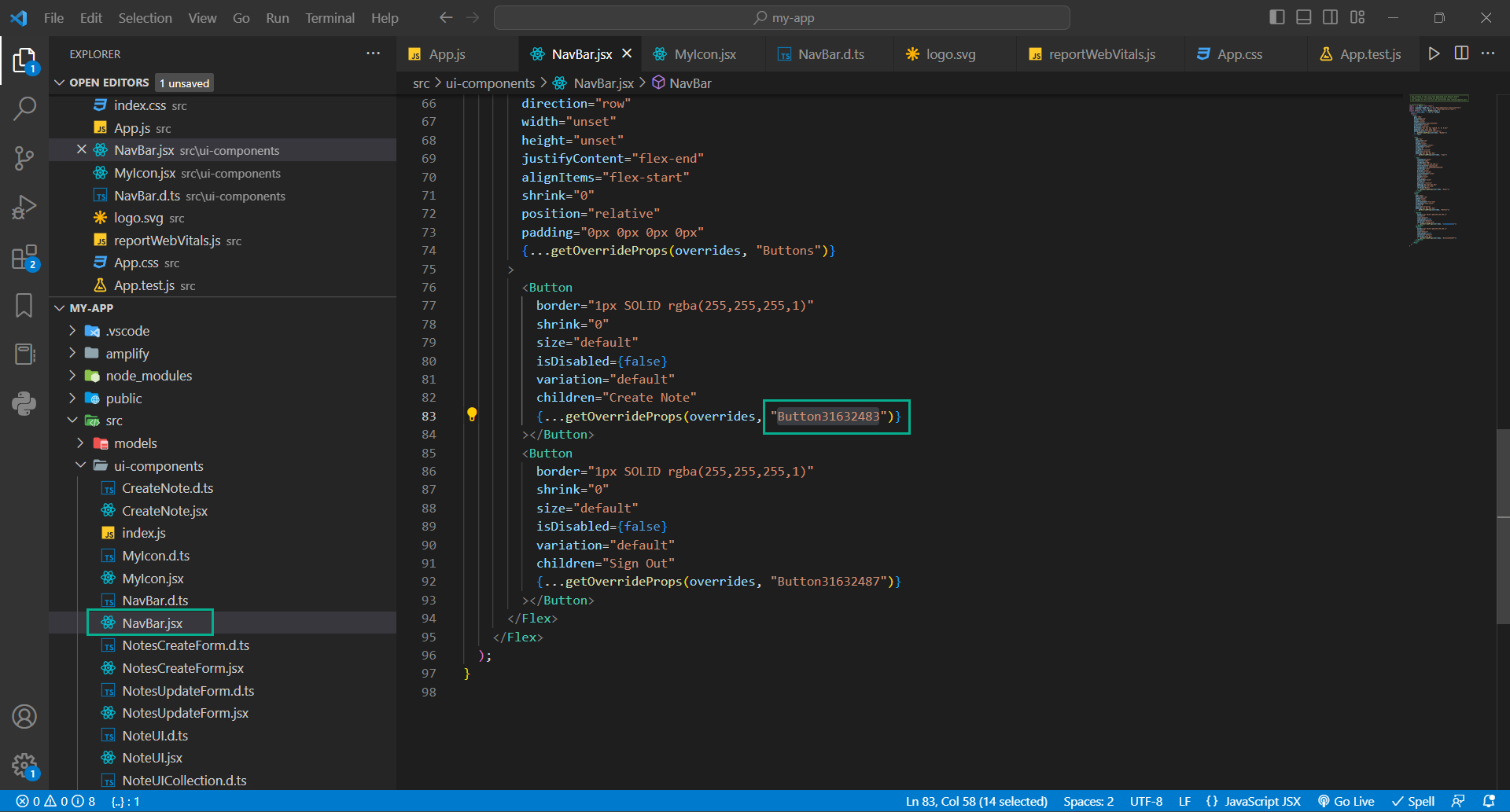

  2. Open the /src/ui-components/NavBar.js file. You will notice a Button child component with getOverrideProps inside it. The second argument getOverrideProps is the Figma key, in this case Button31632483 is .

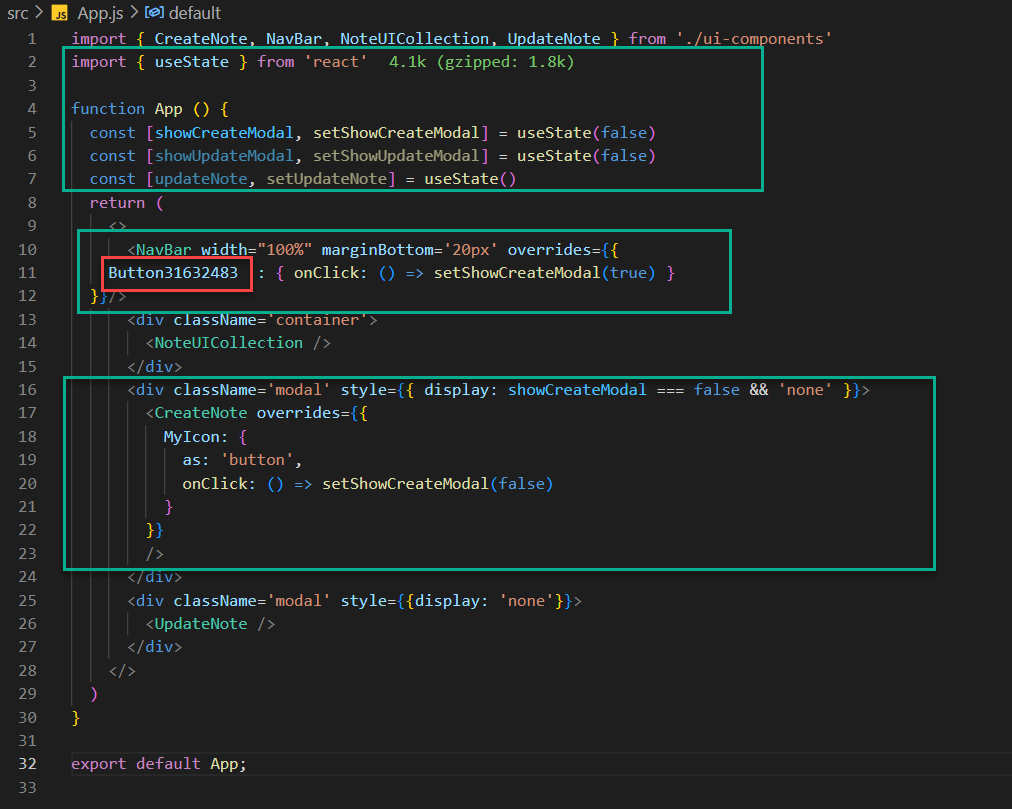

  3. You can pass the overrides prop to instances of your component, which will contain an object. Key will be the key of subcomponent, value will be the property we want to override. We will add an onClick button that toggles showCreateModal to true.

    <NavBar
  marginBottom='20px' width='100%'
  overrides={{
    Button31502513: { onClick: () => setShowCreateModal(true) }
  }}
/>

  4. Now we will conditionally expose the CreateNote method to show only when showCreateModal is true. We will also override the X symbol to close the modal. For accessibility, I would also make it a button.

    <div className='modal' style={{ display: showCreateModal === false && 'none' }}>
  <CreateNote overrides={{
    MyIcon: {
      as: 'button',
      onClick: () => setShowCreateModal(false)
    }
  }}
  />
</div>

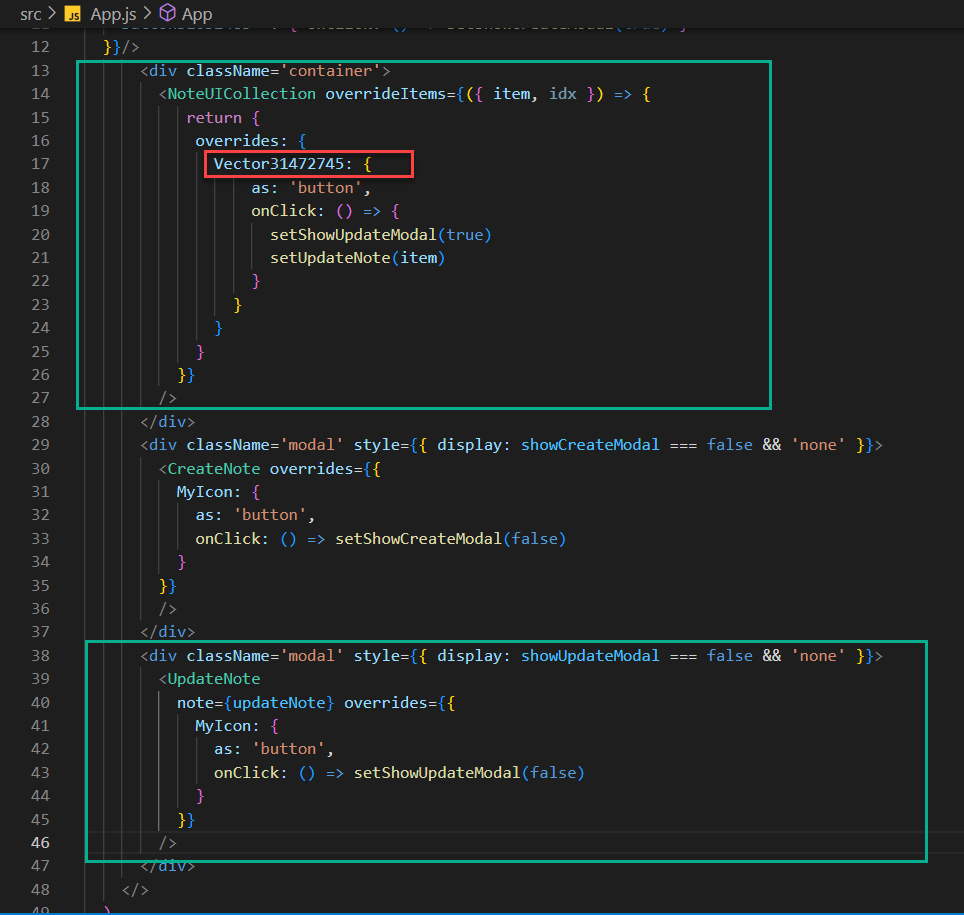

  5. Clicking the edit button on the note will show the update method and also set the version of the note we want to update/

      <NoteUICollection overrideItems={({ item, idx }) => {
  return {
    overrides: {
      Vector31472464: {
        as: 'button',
        onClick: () => {
          setShowUpdateModal(true)
          setUpdateNote(item)
        }
      }
    }
  }
}}
/>

  6. Add an override to UpdateNote to hide the update method when it closes and we will also pass the version of the note that we want to update.

    <div className='modal' style={{ display: showUpdateModal === false && 'none' }}>
  <UpdateNote
    note={updateNote} overrides={{
      MyIcon: {
        as: 'button',
        onClick: () => setShowUpdateModal(false)
      }
    }}
  />
</div>

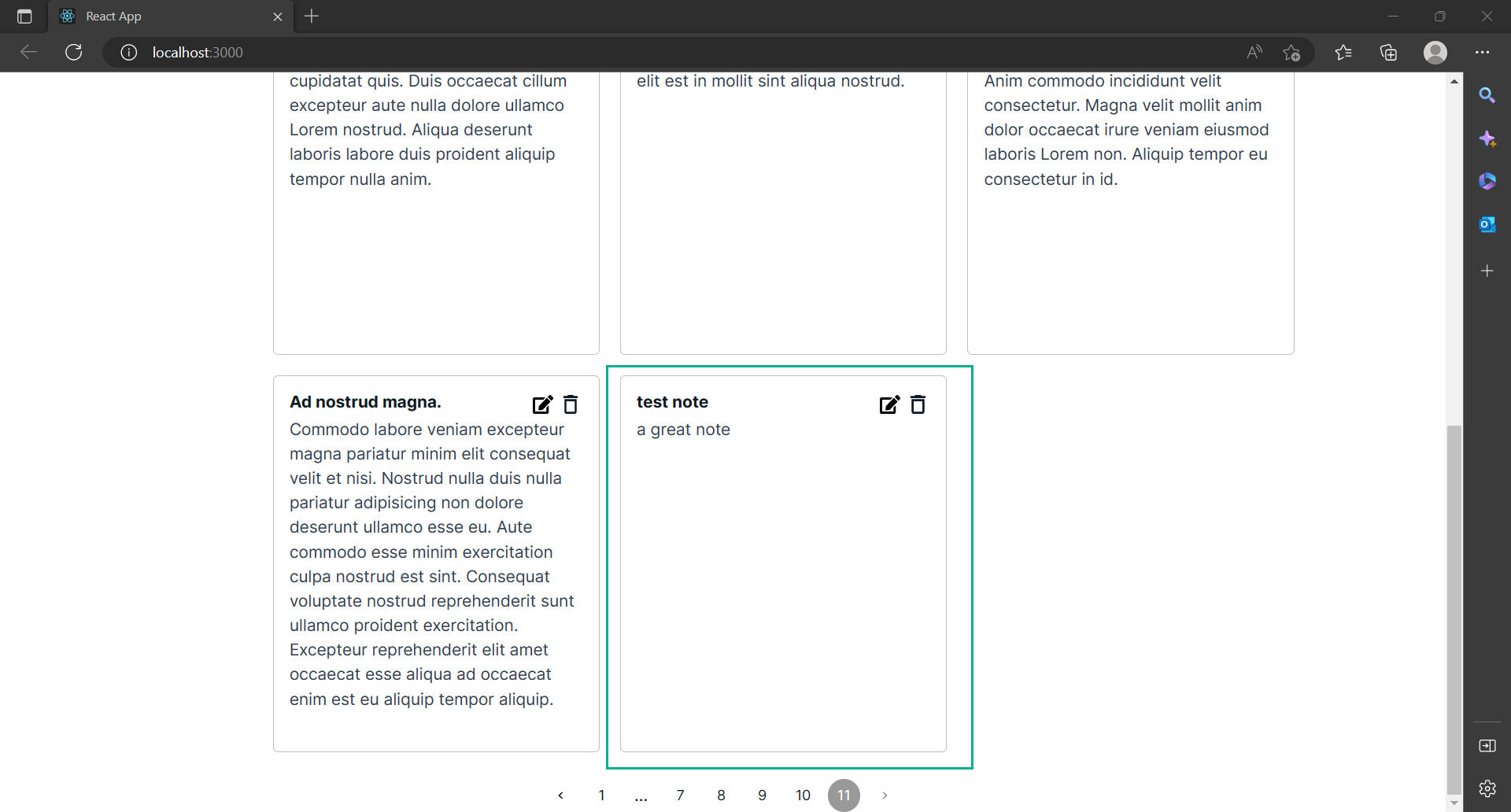

Now our full UI is working as expected. You can use overrides to customize user interface elements created by AWS Amplify Studio in your own code.
